New standard for plug contacts in high-voltage applications

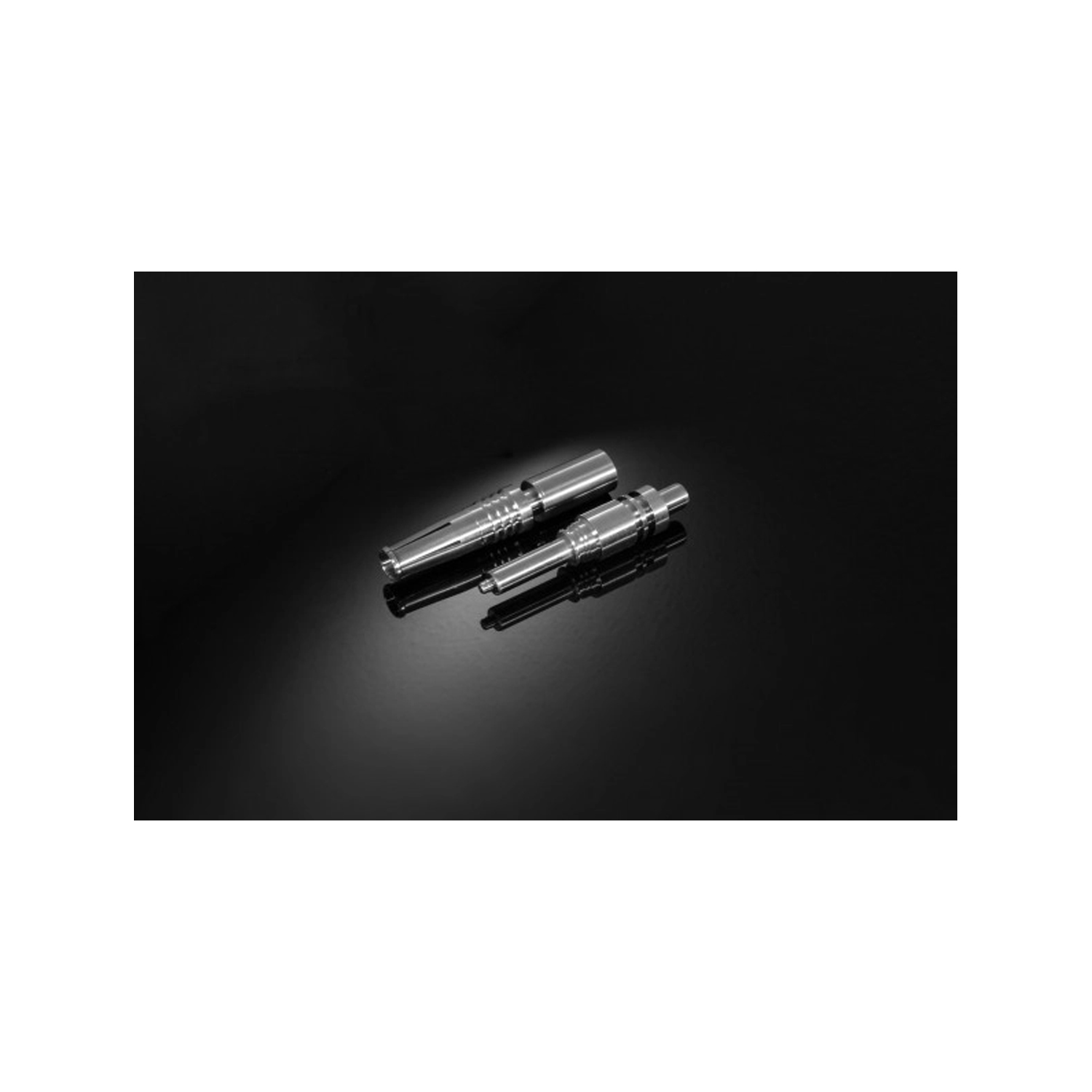

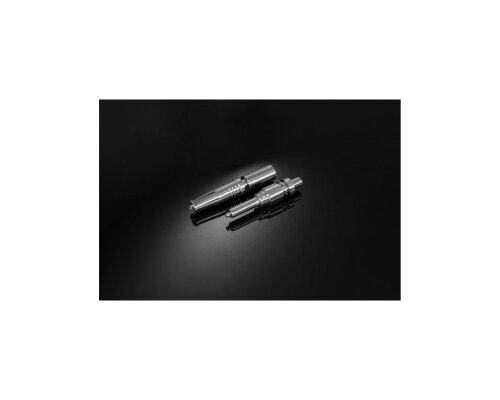

Our silver-graphite dispersion electrolyte ARGUNA® C-100 is specially developed for connector contacts used in high-voltage applications (e.g. high-power charging / HPC). A stable layer system with maximum charging performance without restrictions over the entire lifetime of the charging connectors is the result - and thus the new standard for the industry.
Graphite particles perfectly embedded in the silver layer achieve extraordinary abrasion resistance and thus the high reliability and durability of the plug contact required by the industry. This is made possible by a optimized graphite component which, embedded in the silver matrix, serves as a solid lubricant. In this way, abrasion on the entire contact zone during the mating process can be reduced to a negligible level.
ARGUNA® C-100 thus offers a contact layer on your connectors that is clearly superior to conventional coatings: more than 50,000 mating cycles* without adverse wear and therefore the best possible charging performance at all times without restriction - the new standard in this field.
Find out more about ARGUNA® C-100: New standard for plug contacts in high-power applications
Electrolyte characteristics
Electrolyte type Alkaline-cyanide
Metal content 30 (25 - 35) g/l Ag
pH value > 11
Operating temperature 18 - 25 °C
Current density range 1.5 (1.0 - 2.5) ASD
Plating speed approx. 1 μm / 1.5 min at 1 ASD
Anode material Silver
Coating characteristics
Coating Silver-graphite dispersion surface
Purity approx. 98 wt.% Ag
Colour of deposit light grey to anthracite
Brightness matt
Hardness of deposit approx. 70-80 HV
Max. coating thickness 8 - 30 μm
Density of the coating approx. 9.8 g/cm³
Advantages
Excellent electrical conductivity and even lower resistance than pure-silver
Outstanding tribological properties
Significantly reduced friction coefficients compared to pure and hard silver coatings
Consistent coating performance at elevated temperatures (>150°C)
Stable layering properties under humidity and dust and other exposed environmental conditions
Maintenance-free layer system over the entire service life the otherwise necessary lubrication is not required
Cross-compatibility with existing infrastructure matching the existing connector types in the field
Deposition of very thick layers possible
Applications
EV-Charging Connector
High voltage applications
