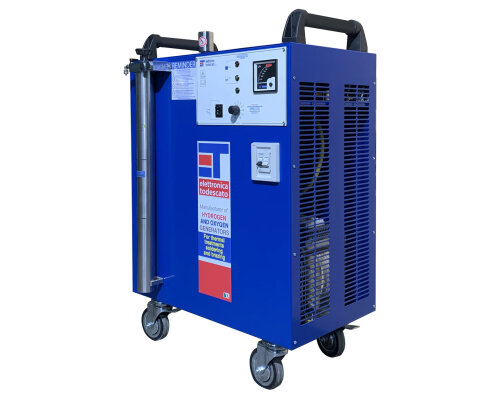

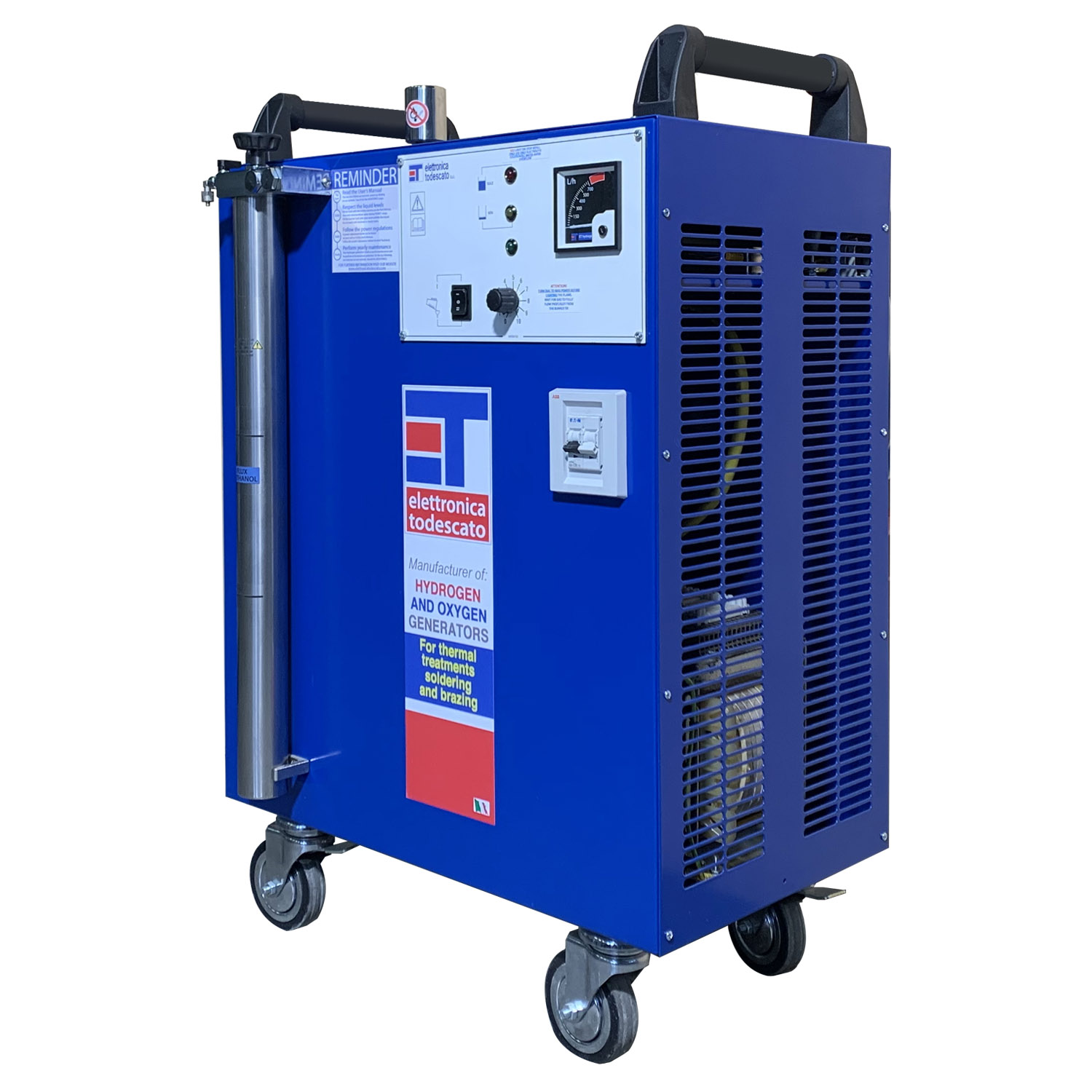

Product Description:
The operating principles of these generators is based on the electrolytic dissociation of water.
Specially suitable for: Brazing and welding in goldsmithing.

Maintenance is extremely simple.


Further benefits may be ignored at first, but soon several qualities of the machine will be appreciated like:

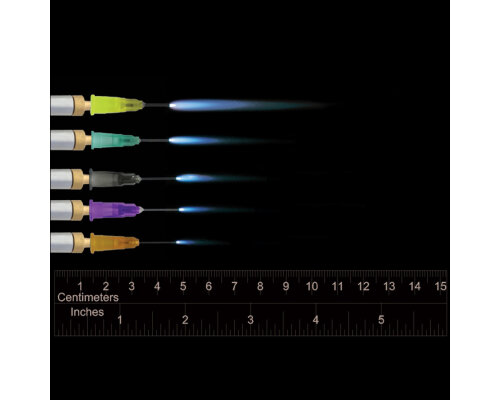

You can use one single 700 lt flame, or up to 14 small flames.
NO CO2 emissions (just water vapour).
It is VERY SAFE compared to bottled gas like acetylene, butan or other gasses.
The gauge needle, gives the operator better visual display in order to have better regulation control.
There are 2 safety systems in place: a flame arrester and a pressure switch ( max. )
Offers more possibilities for brazing, welding and CASTING various sizes from very light to larger items.
Prior to delivery, we carry out a FULL 3 DAY quality control on all of our mixed gas systems. Such a high standard control guarantees that our machines are ready to go, avoiding any technical issues when they get started.​
Offers more possibilities for brazing and welding for various sizes (from light to larger items  MAX 150 grams). With Max power, you can perform a CAST of 100 grams of precious metal in 4 minutes.
Compared to the other models, with the Model L/700 you can perform a larger variety of jewelry objects such as chains, retip prongs, resize rings, anneal larger flat metal plates.
We would also like to remind our potential customers, that the MODEL L/700, is usually one of the best choices since it also contains many user variables that, at first, may not be as noticeable, but that all our users are glad to have as time passes by. If needed a more powerful model can be considered.

ATTENTION: We recommend our customers to purchase the YEARLY MAINTENANCE KIT.

This operation MUST be performed once per year. The yearly upgrade of our systems, through the implementation of the Yearly Maintenance Kit, will keep our machine functioning at peak performance, maintain efficiency and reliability for approximately 10 years.


Included accessories:

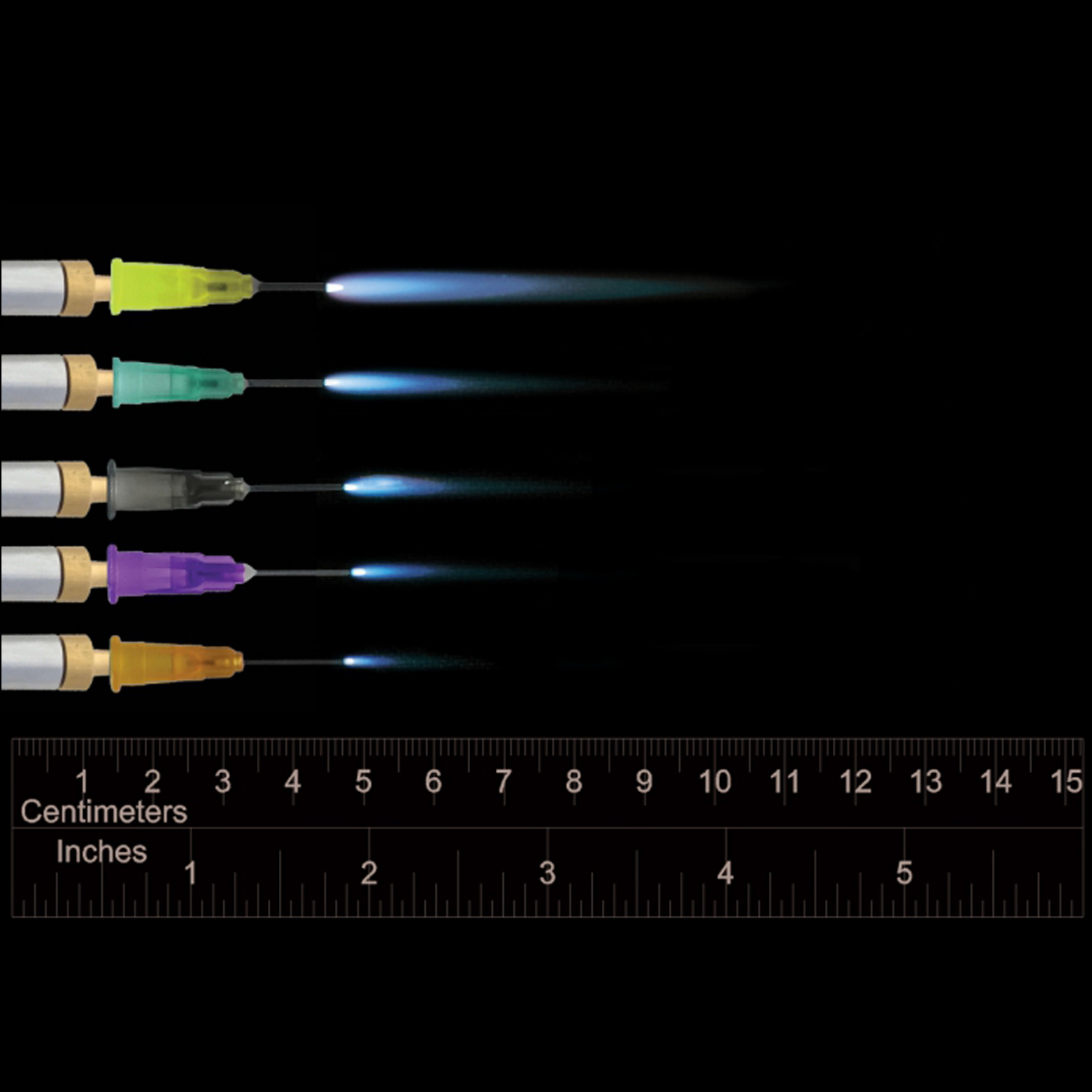

Nozzles
Check Valve
BACKFIRE ARRESTER
Fireproof Plastic Hose
SPECIAL TORCH with shut-off valve and BACK FLAME ARRESTER

Optionals:
Standard Torch
BURNER TIPS (PE/STEEL)
Magnetic stainless steel SPECIAL TORCH HOLDER
YEARLY MAINTENANCE KIT FOR L/700

Technical features:

Gas Mixed Gas
Gas Production 700 Lt/h
Demineralized Water consumption 0,35 Lt / h
Alcohol consumption 115 cc / h
Booster Tank capacity 1 Lt
Max power KW 3 (220/230 V.)
Electrolytic solution quantit 10 lt (2.64 US gal)
Dimensions 60 x 35 x 75 cm (L x P x H )
Weight 130 Kg
Fuse
Working pressure 1 BAR
