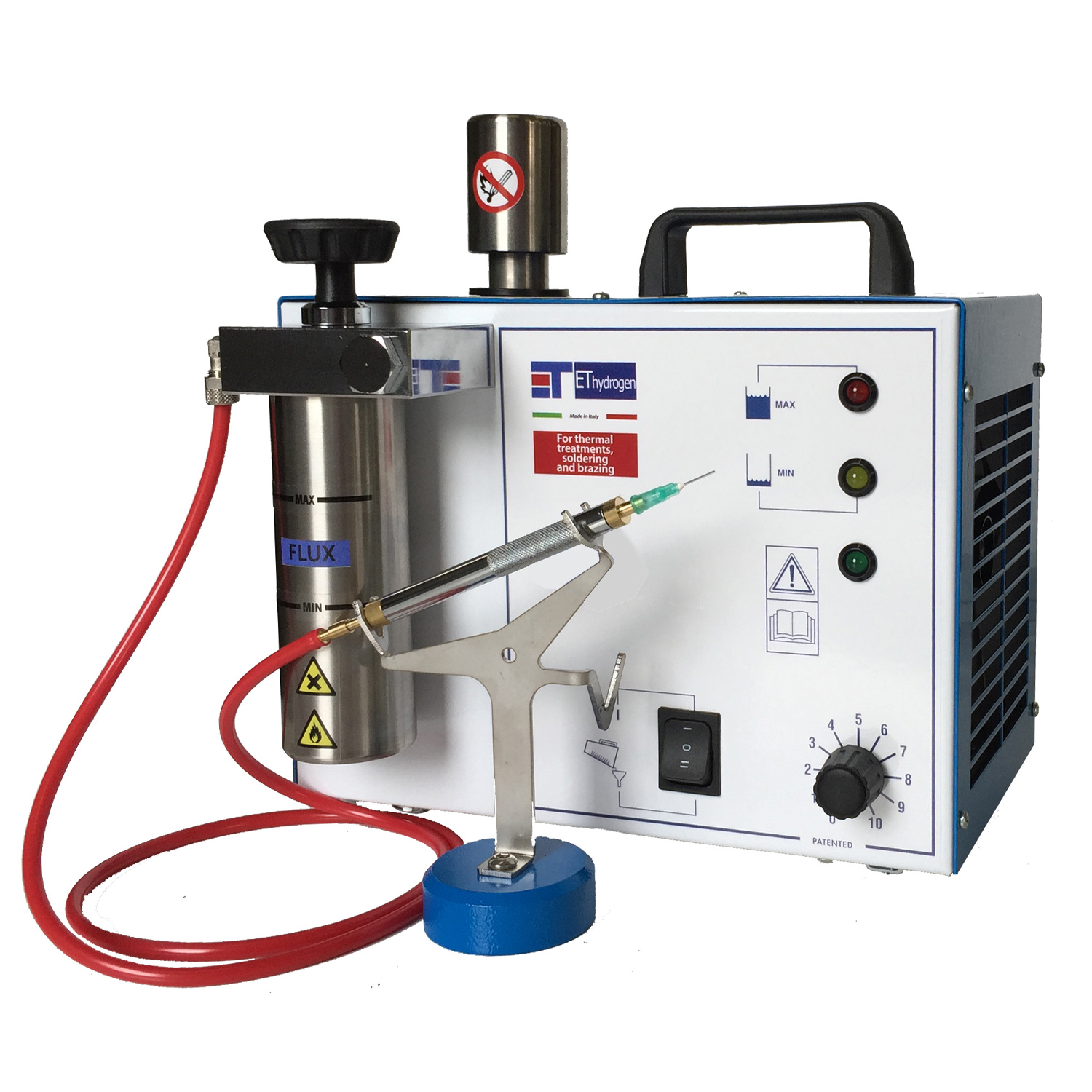

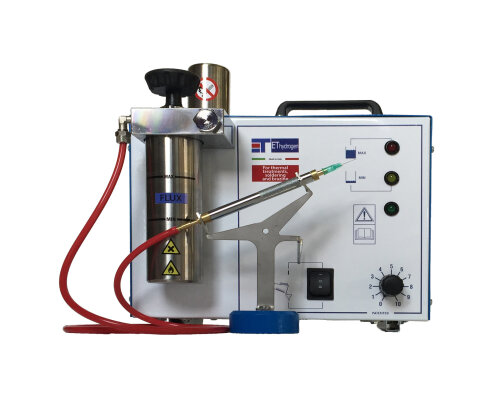

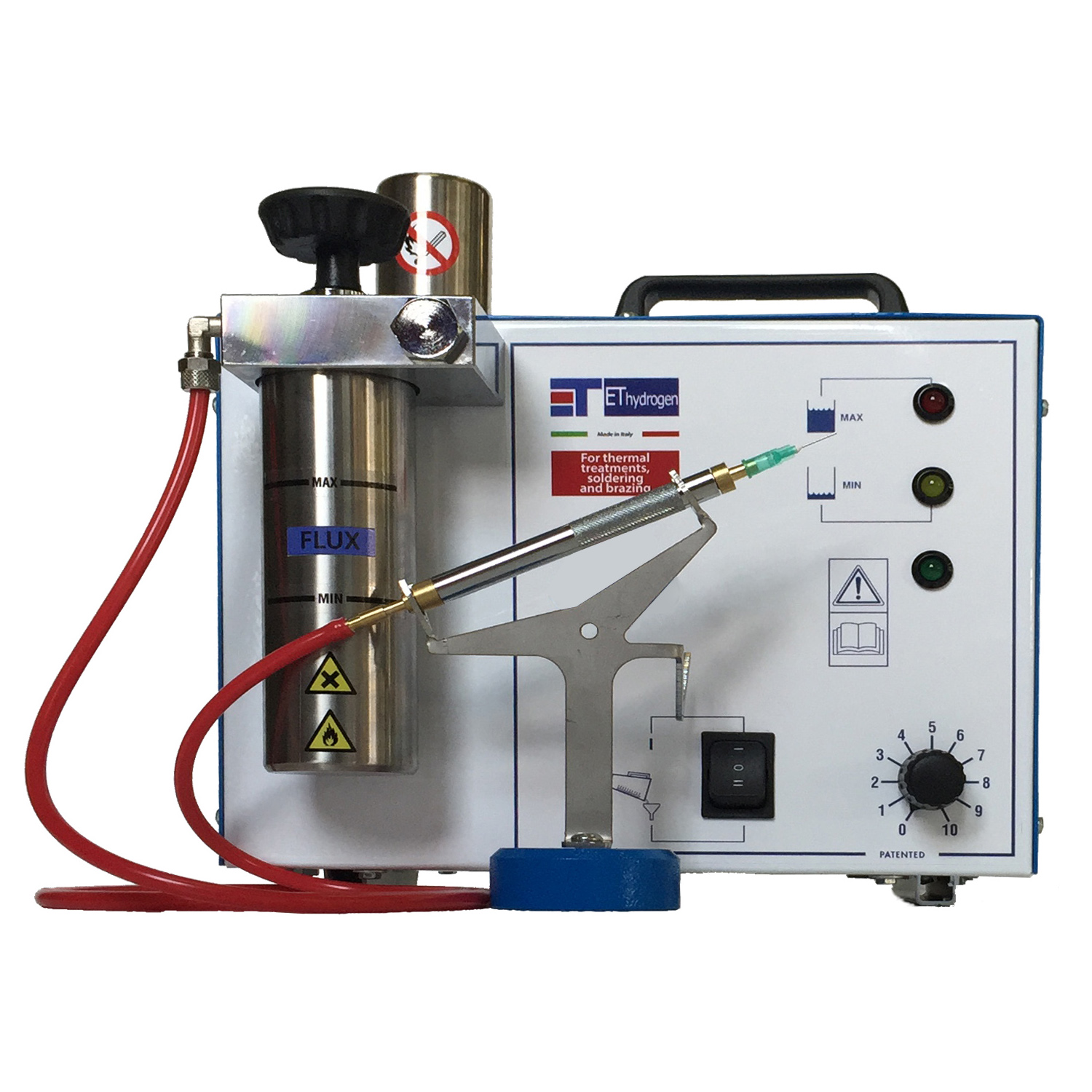

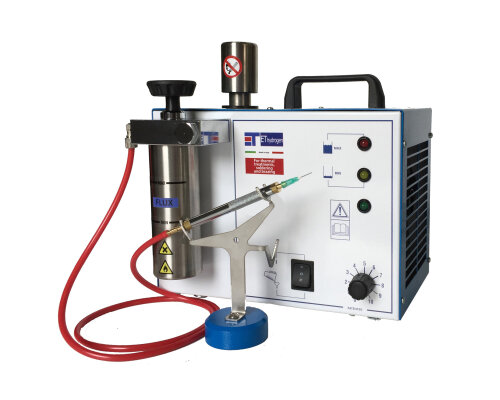

Product Description:
It is the smallest and most portable welding model. It can produce 45 Lt / h and it is ideal for single operators.
The principles operation of this generator is based on the electrolytic dissociation of water. Maintenance is extremely simple. Specially suitable for brazing in goldsmithing and jewelry.
Further benefits may be ignored at first, but soon several qualities of the machine will be appreciated like:
Small Unit, space conscious, convenience.
Visual colored control levels, for easy monitoring.
Accurate small repairs.
State of the Art, high Quality Technology.

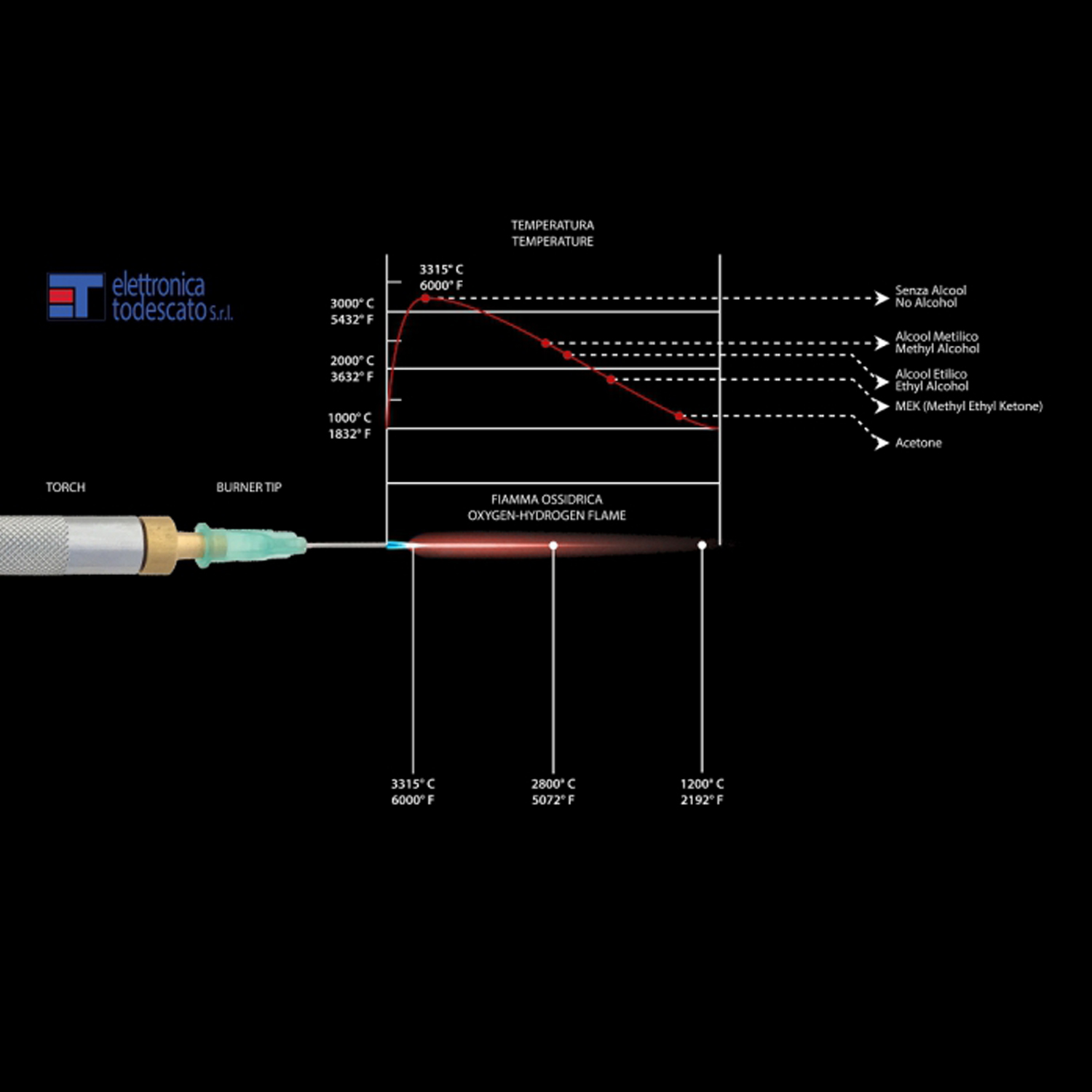

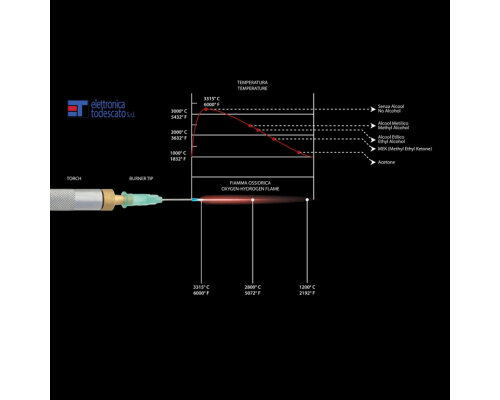

Very high temperature flame, (3200°C, 5800°F).
Synergistically efficient.
Safety system in place: SAFETY CAP (still extremely SAFE due to low gas production).
Prior to delivery, we carry out a FULL 3 DAY quality control on all of our mixed gas systems. Such a high standard control guarantees that our machines are ready to go, avoiding any technical issues when they get started.
Brazing: ( Max weight , 10 grams, for these items ), Rings/Branches, light chains in Gold/Silver or other metals, Earrings/ Earrings stud / Necklaces / Light Metals / Prongs / Cufflinks.
Max MELTING weight, 4 grams.
Max ANNEALING SURFACE , 0.47 sq.inches, with a thickness of up to 0.039 inches.
ATTENTION: We recommend our customers to purchase the YEARLY MAINTENANCE KIT. This operation MUSTbe performed once per year.
The yearly upgrading of our systems, through the implementation of the Yearly Maintenance Kit, will keep our machine functioning at peak performance, maintain efficiency and reliability for approximately 10 years.
Included accessories:
Standard Torch

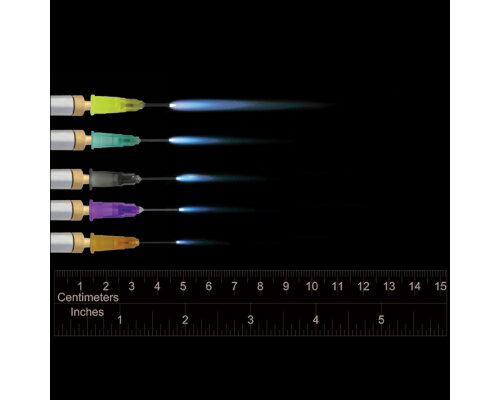

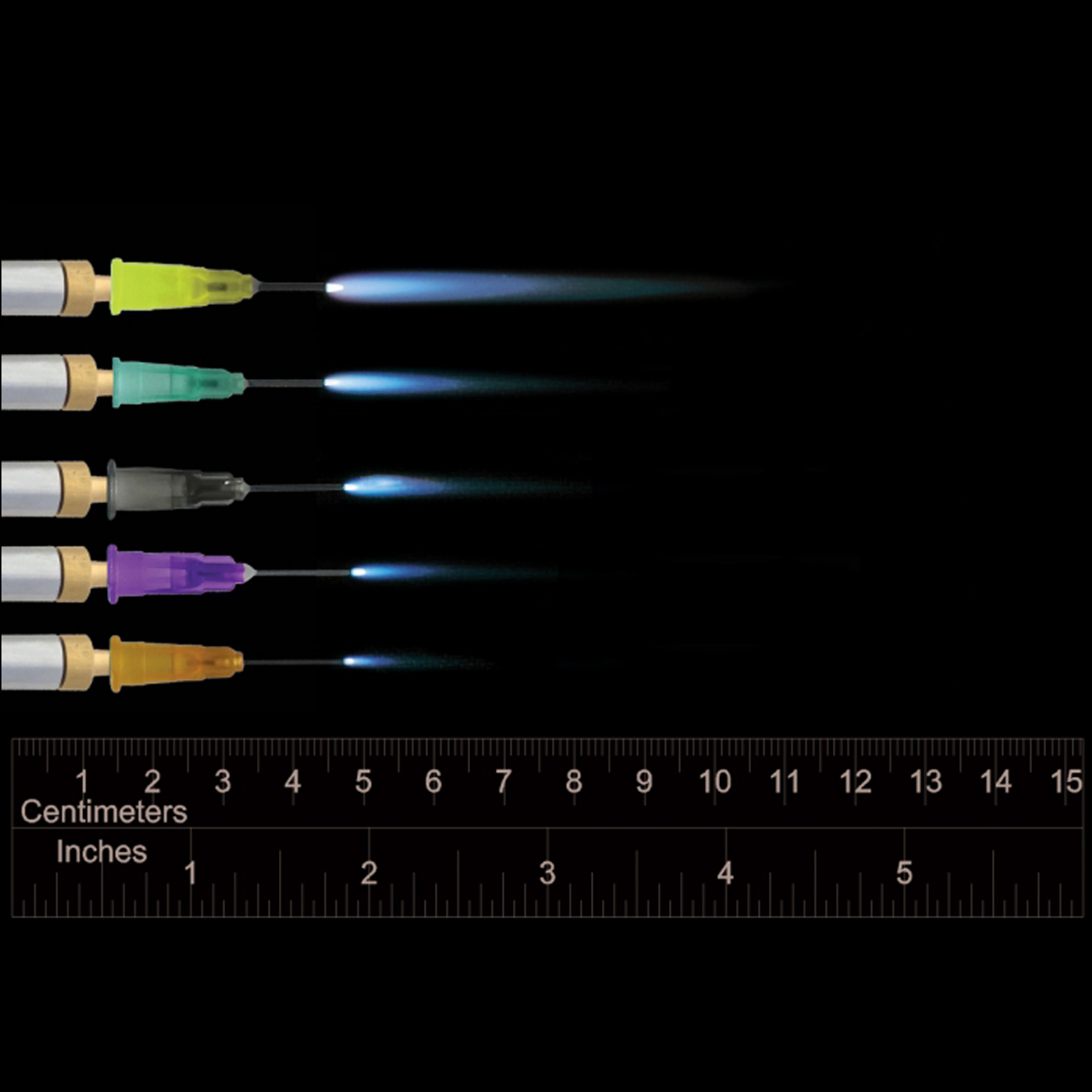

BURNER TIPS (PE/STEEL)
Check Valve
Fireproof Plastic Hose
Optionals:
YEARLY MAINTENANCE KIT L/45
Torch holder for standard torch
Technical features:
Gas Mixed Gas
Gas Production 45 Lt/h
Demineralized Water consumption 22 cc / h
Alcohol consumption 9 cc / h
Booster Tank capacity 153 cc
Max power Watt 280 (220/230 V.)
Electrolytic solution quantity 0,5 lt (0,132 US gal)
Dimensions 28,5 x 23 x 29 cm (L x P x H )
Weight 14 Kg
Fuse 4 A (230 V.) - 8 A. (115 V.)
Working pressure 1 BAR
