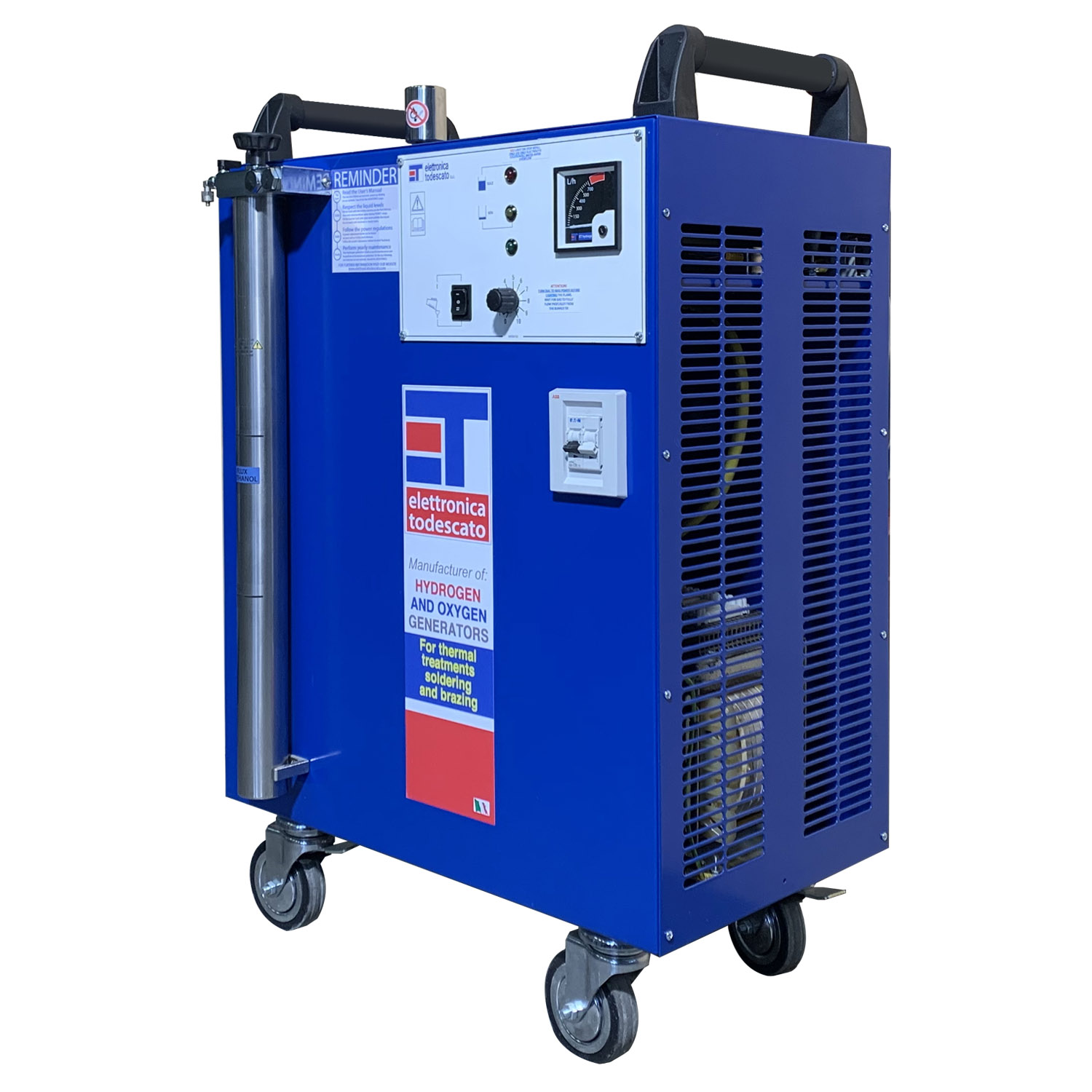

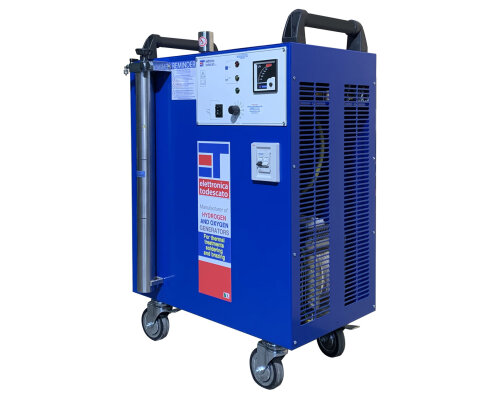

Product Description:
The operating principles of these generators are based on the electrolytic dissociation of water.
Especially suitable for: brazing and welding in goldsmithing.
Maintenance is extremely simple.
Further benefits may be ignored at first, but soon several qualities of the machine will be appreciated like:
You can use one single 350 lt flame, or up to 7 small flames.
NO CO2 emissions (just water vapour).
It is VERY SAFE compared to bottled gas like acetylene, butan or other gasses.
The needle Gauge, gives the operator better visual display, in order to have better regulation control.
There are 2 safety systems in place, a Flame Arrester and a Pressure switch ( max. )
Offers more possibilities for brazing, welding and CASTING, various sizes from very light to larger items.
We perform a FULL 3 DAYS Quality Control on all of our Mixed Gas systems, prior to delivery. This High Standard of control, gives us assurance, that our machines are ready to go, so that the customer does not encounter any technical issues while they get started.
Offers more possibilities for Brazing and Welding for various sizes (from light to larger items MAX 75 grams). With Max power, you can perform a CAST of 50 grams of precious metal in 4 minutes.
Compared to the other models, with the Model L/350, you can perform a larger variety of jewelry objects such as chains, retip prongs, resize rings, anneal larger flat metal plates.
We would also like to remind our potential customers, that MODEL L/350, is usually one of the best choices since it also contains many user variables that, at first, may not be seen, but that all our users are glad to have as time passes by. If needed, a more powerful model can be considered.
ATTENTION: We recommend our customers to purchase the YEARLY MAINTENANCE KIT.
This operation MUST be performed once per year.
The yearly upgrade of our systems, through the implementation of the Yearly Maintenance Kit, will keep our machine functioning at peak performance, maintain efficiency and reliability for approximately 10 years.
Included accessories:

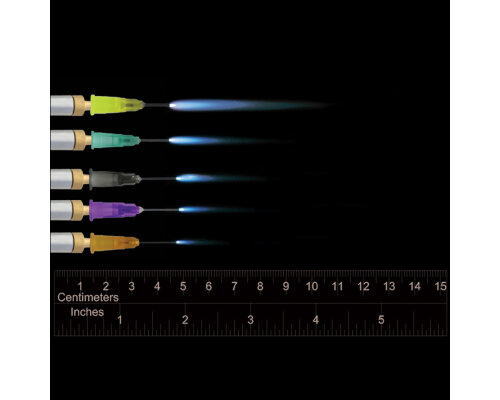

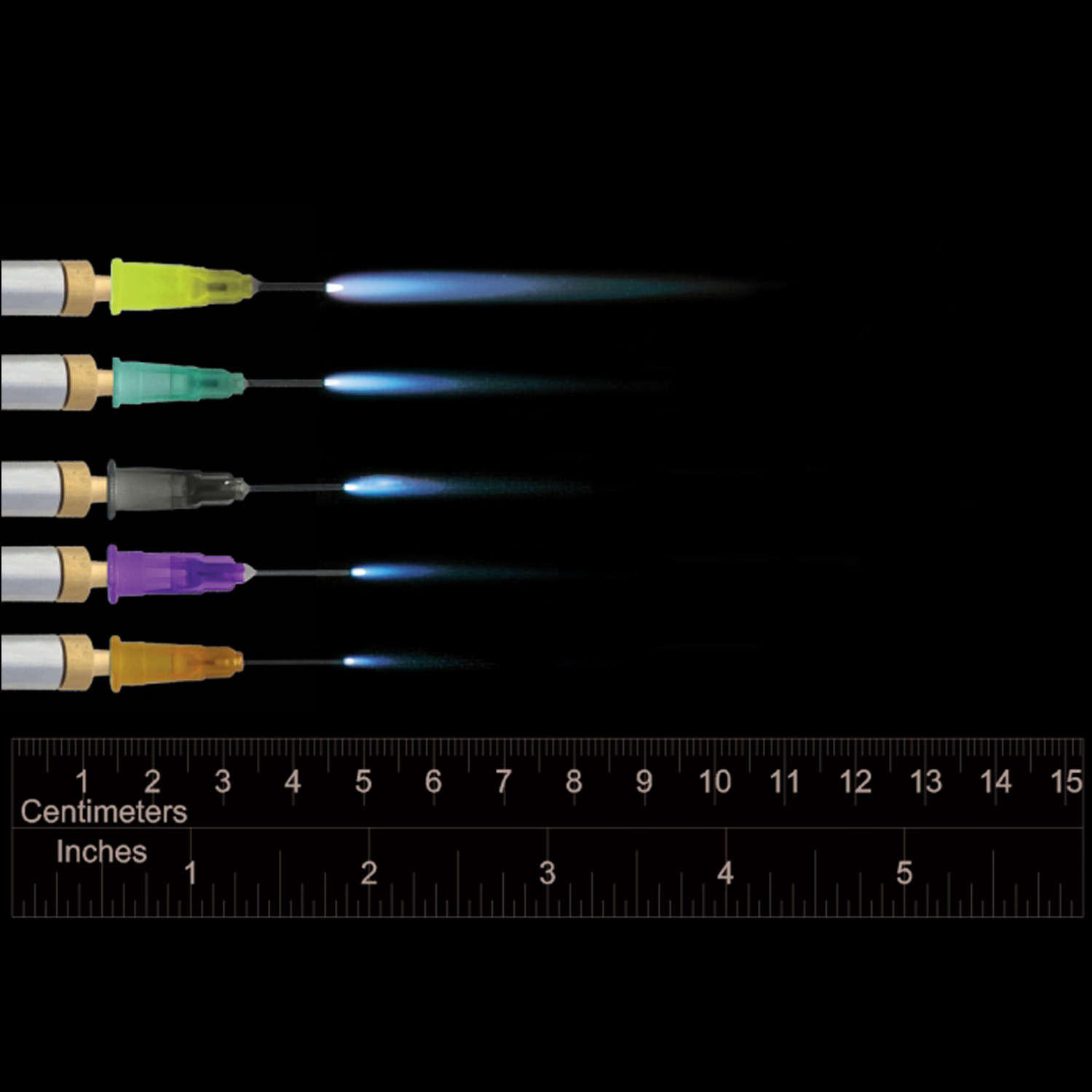

Nozzles
BACKFIRE ARRESTER
Check Valve
Fireproof Plastic Hose
SPECIAL TORCH with shut-off valve and BACK FLAME ARRESTER
Optionals:
Standard Torch
BURNER TIPS (PE/STEEL)
Magnetic stainless steel SPECIAL TORCH HOLDER
YEARLY MAINTENANCE KIT FOR L/350
Technical features:
Gas Mixed Gas
Gas Production 350 Lt/h
Demineralized Water consumption 0,175 Lt / h
Alcohol consumption 57 cc / h
Booster Tank capacity 0,68 Lt
Max power KW 1,5 (220/230 V.)
Electrolytic solution quantity 6 lt (1.58 US gal)
Dimensions 55 x 30 x 65 cm (L x P x H )
Weight 95 Kg
Fuse
Working pressure 1 BAR
