Chrome-plated elements are mostly used in the automobile industry but also for various other decorative applications. Previously, chrome(VI) processes were primarily used. Due to today’s environmental and safety concerns as well as changes to the law, chrome(III) processes have already been in use for a few years. And they are under constant development.
In order to retain the long-term function of the electrolyte and therefore the quality of the coating as the chrome separates from the trivalent solution, the use of insoluble MMO anodes with special layer setup is essential.

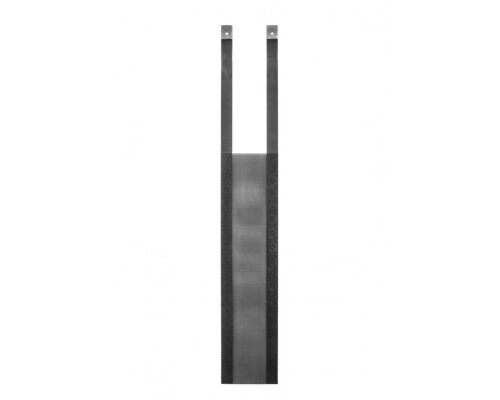

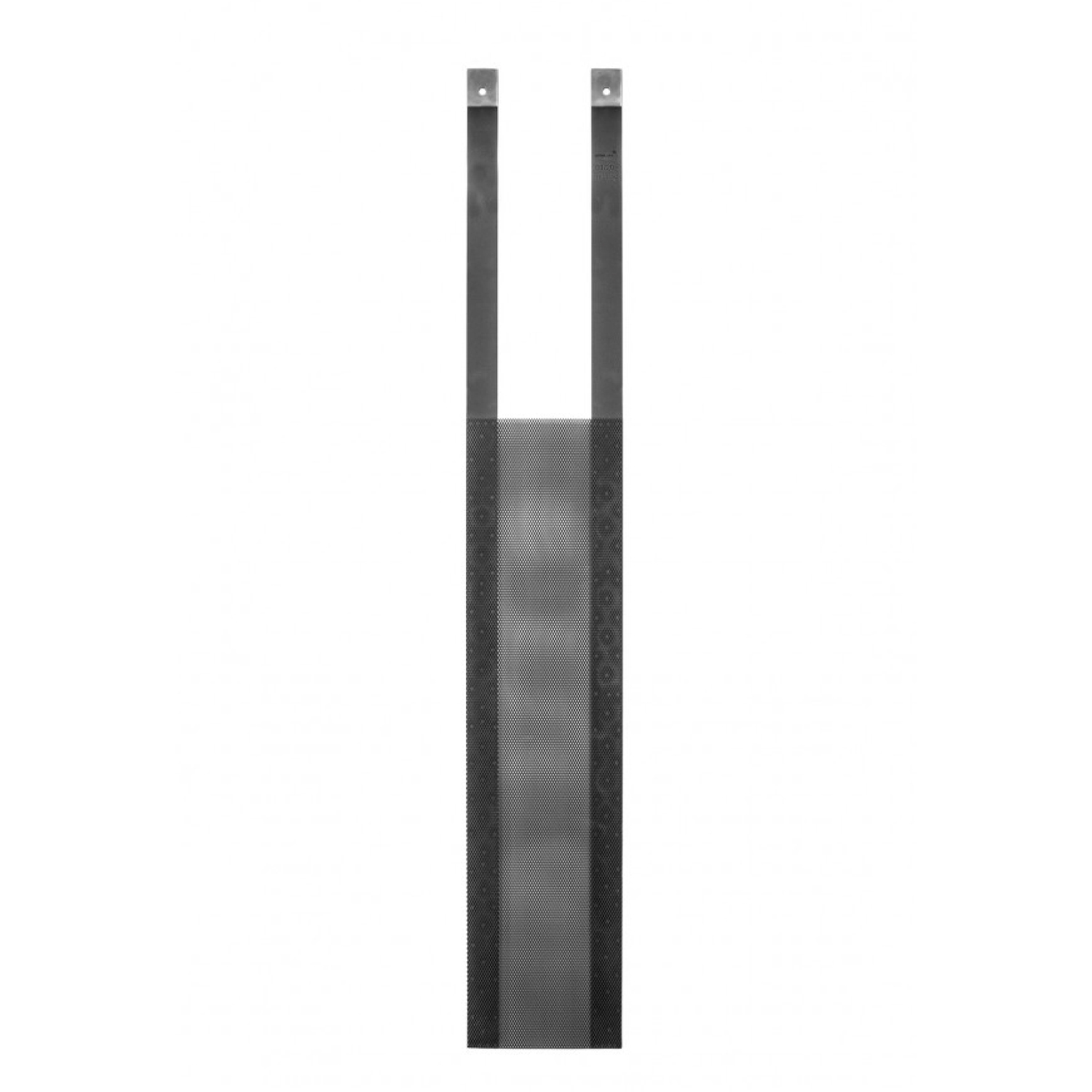

Our PLATINODE® Cr3 anode system offers a solution that can use this coating layering to significantly reduce oxidization from Cr3+ to Cr6+. Even when used continuously, chrome(VI) concentrations do not rise to disruptive levels.
Our anodes have been tested and approved by renowned electrolyte producers and endcustomers. Thanks to optimized production methods, it is possible to offer short delivery times.
Further information in our detailed product flyer: PLATINODE® Cr3
Electrolyte characteristics
pH value Acidic to alkaline
Operating temperature RT - 80 °C
Anodic current density (equipment-dependant)0 - 30 A/dm2 depending on expanded metal type
Current type Direct current, PP, RPP
Contacting clips, screws
Coating characteristics
Coating Ir mixed oxide
Colour of deposit black
Condition microporous
Layer weight 20 - 40 g/m2 IrO2 proportion
Advantages
No disruptive Cr6 formation on anodes
Tested and specified by renowned electrolyte producers
Shortest delivery times possible
Cutting edges and power supply also coated
Advice, planning and further service on site
Cost reductions thanks to longer electrolyte lifetime
Applications
Chrome(III) process e.g. for decorative automotive parts or furnishings (chrome handles, hooks, mounting bracket etc.)
