INDIUM 9200 - INDIUM ELECTROLYTE
Indium Electrolyte for High-Speed-Plating
Indium is a silver white, soft metal with excellent thermal conductivity. It is used for reflow soldering, low temperature soldering and as thermal interface material.
Indium 9200 is an alkaline electrolyte, which delivers ultra pure and ductile indium layers for typical use on press-fit connectors. The electrolyte is characterized by easy maintenance and low consumption of additives.
It convinces with an excellent coverage and improved metal and thickness distribution. The electrolyte is EDTA and NTA free and does not contain complexing agents.

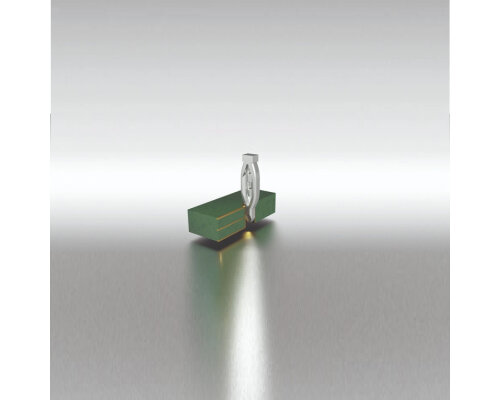

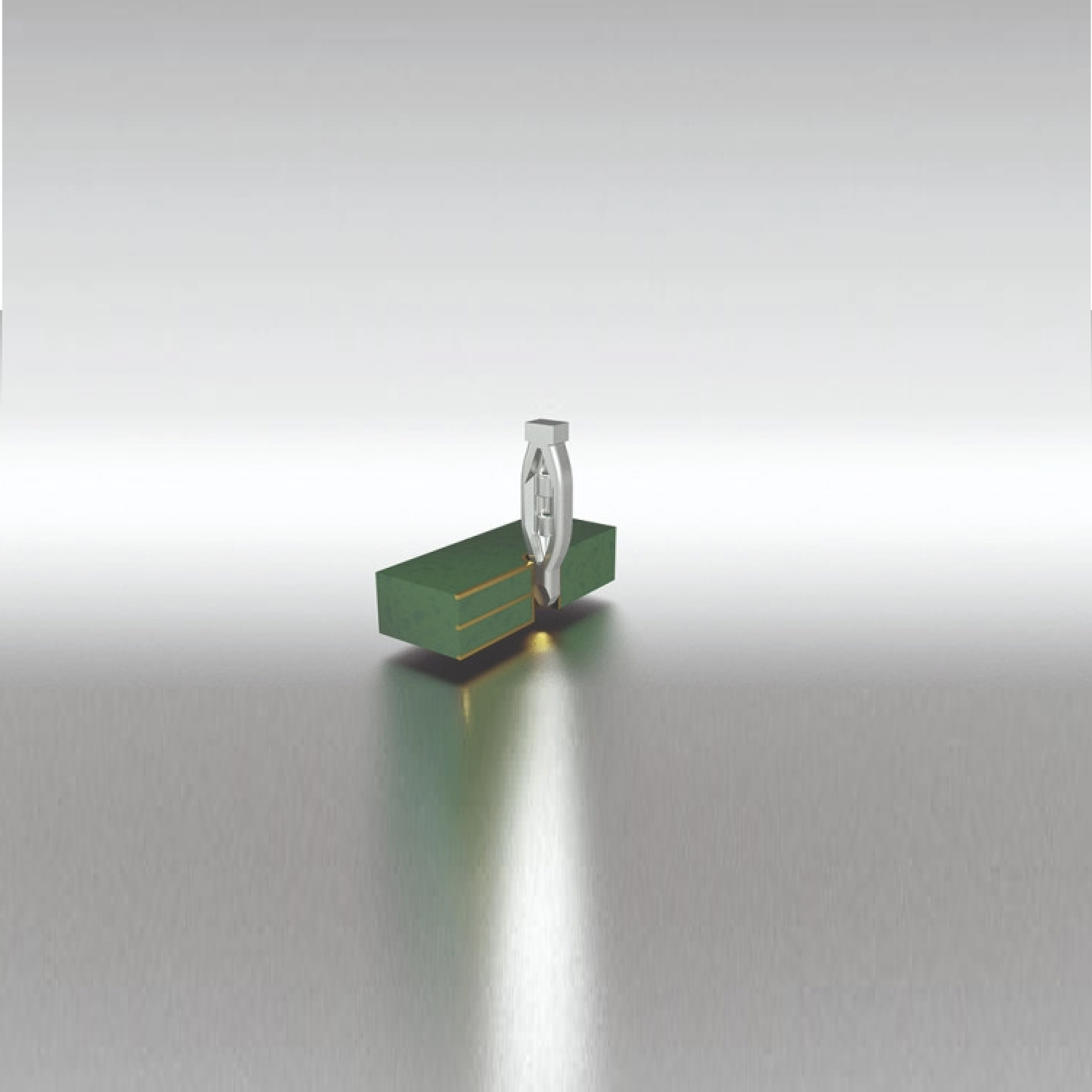

(Photos: Possehl Electronics Deutschland GmbH, pretPin®)
Electrolyte characteristics
Electrolyte type Alkaline
Metal content 20 - 50 g/l
pH value 13.0
Operating temperature 20 - 65 °C
Current density range up to 10 ASD, (depending on application)
Plating speed approx. 0.65 μm/min at 2 A/dm²
Anode material Indium or MMO 187 SO
Coating characteristics
Purity 99.5 wt.% In
Colour of deposit Silver-white
Brightness Matt to semibright
Hardness < 1 HV
Density of the coating 7.31 g/cm³
Advantages
Alkaline high speed electrolyte
White, matt to semibright coatings
RoHS compliant
Ultra pure and ductile Indium layers
Perfect for reflow and solder applications
Applications
Press-fit technology for connectors
Low temperatur soldering and thermal interconnects
